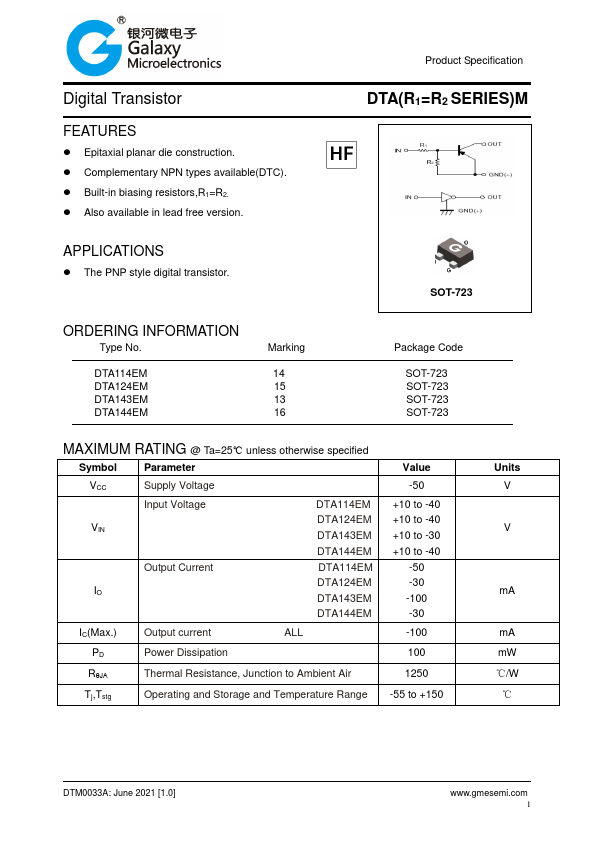

DTA114EM
DTA114EM is Digital Transistor manufactured by Galaxy Microelectronics.
FEATURES
- Epitaxial planar die construction.
- plementary NPN types available(DTC).
- Built-in biasing resistors,R1=R2.
- Also available in lead free version.
DTA(R1=R2 SERIES)M
APPLICATIONS
- The PNP style digital transistor.
SOT-723
ORDERING INFORMATION
Type No.
DTA114EM DTA124EM DTA143EM DTA144EM
Marking
14 15 13 16
Package Code
SOT-723 SOT-723 SOT-723 SOT-723
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter
Supply Voltage
Input Voltage
Output Current IO
DTA114EM DTA124EM DTA143EM DTA144EM DTA114EM DTA124EM DTA143EM DTA144EM
IC(Max.)
Output current
Power Dissipation
RθJA
Thermal Resistance, Junction to Ambient Air
Tj,Tstg
Operating and Storage and Temperature Range
Value -50
+10 to -40 +10 to -40 +10 to -30 +10 to -40
-50 -30 -100 -30 -100
-55 to +150
Units...
