DTA114YE
DTA114YE is Digital Transistors manufactured by onsemi.

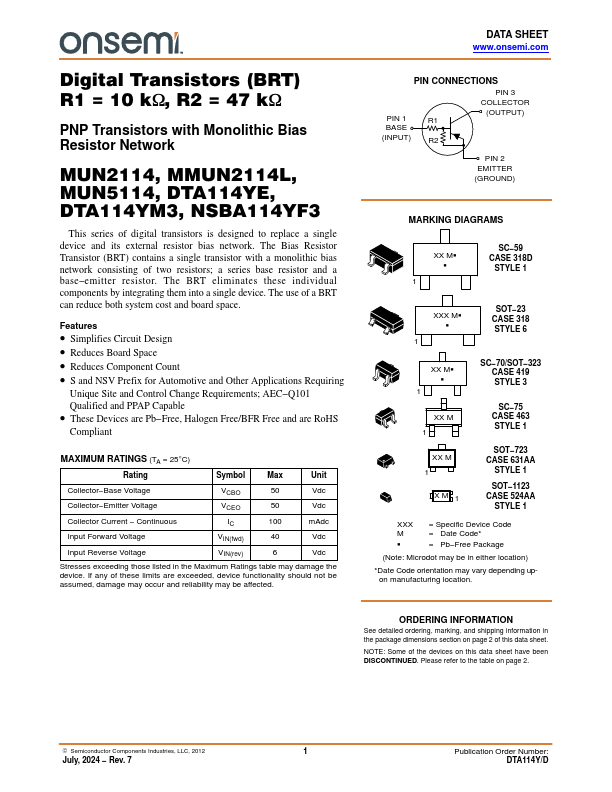

Digital Transistors (BRT) R1 = 10 kW, R2 = 47 kW
PNP Transistors with Monolithic Bias Resistor Network
MUN2114, MMUN2114L, MUN5114, DTA114YE, DTA114YM3, NSBA114YF3
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base- emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
Features
- Simplifies Circuit Design
- Reduces Board Space
- Reduces ponent Count
- S and...
