DTC123YSA, DTC123YE - Digital transistors

JCET

📥 Download Datasheet

DTC123YSA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC123YSA, DTC123YE. Please refer to the document for exact specifications by model.

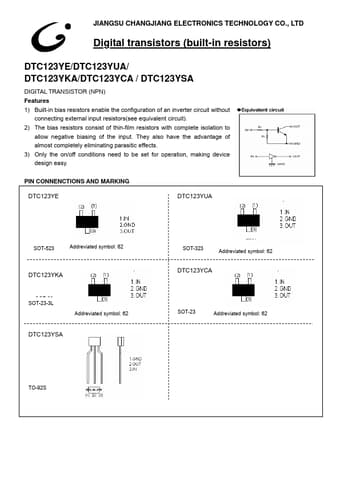

datasheet Preview Page 2

Datasheet Details

Part number	DTC123YSA, DTC123YE
Manufacturer	JCET
File Size	123.60 KB
Description	Digital transistors
Datasheet	DTC123YE-JCET.pdf
Note	This datasheet PDF includes multiple part numbers: DTC123YSA, DTC123YE. Please refer to the document for exact specifications by model.

DTC123YSA Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. PIN.
