DTC114EUA, DTC114EM - NPN Digital Transistor

JCST

📥 Download Datasheet

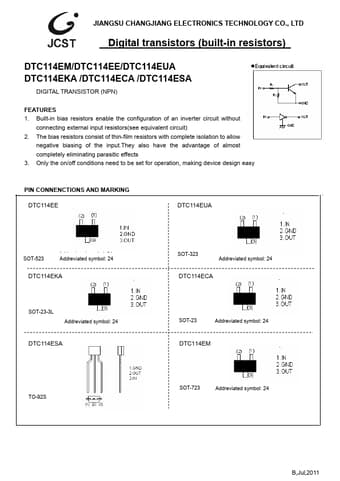

DTC114EUA Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC114EUA, DTC114EM. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTC114EUA, DTC114EM
Manufacturer	JCST
File Size	396.56 KB
Description	NPN Digital Transistor
Datasheet	DTC114EM-JCST.pdf
Note	This datasheet PDF includes multiple part numbers: DTC114EUA, DTC114EM. Please refer to the document for exact specifications by model.

DTC114EUA Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit) 2. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects 3. Only the on/off conditions need to be set for operation, making device design easy PIN.
