DTC124ECA

NPN Digital Transistor

DTC124ECA Features

* Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)

* The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of alm

DTC124ECA Datasheet (448.66 KB)

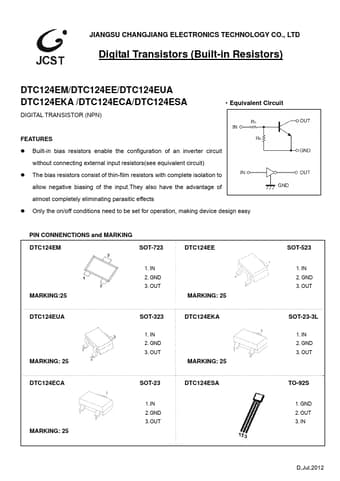

Preview of DTC124ECA PDF

Datasheet Details

Part number:

DTC124ECA

Manufacturer:

JCST

File Size:

448.66 KB

Description:

Npn digital transistor.
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTC124EM/DTC124EE/DTC124EUA DTC124EKA /DTC124ECA/DTC124ES.
