S10BC, S10AC - Surface Mount General Purpose Silicon Rectifiers

S10BC Description

.

S10BC Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Lead free in comply with EU RoHS 2011/65/EU directives S10AC Series Surface Mount General Purpose Silicon Rectifiers SMC 2 1 MECHANICAL DATA
* Case: SMC
* Terminals: Solderable per MIL-STD-750

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S10BC, S10AC. Please refer to the document for exact specifications by model.

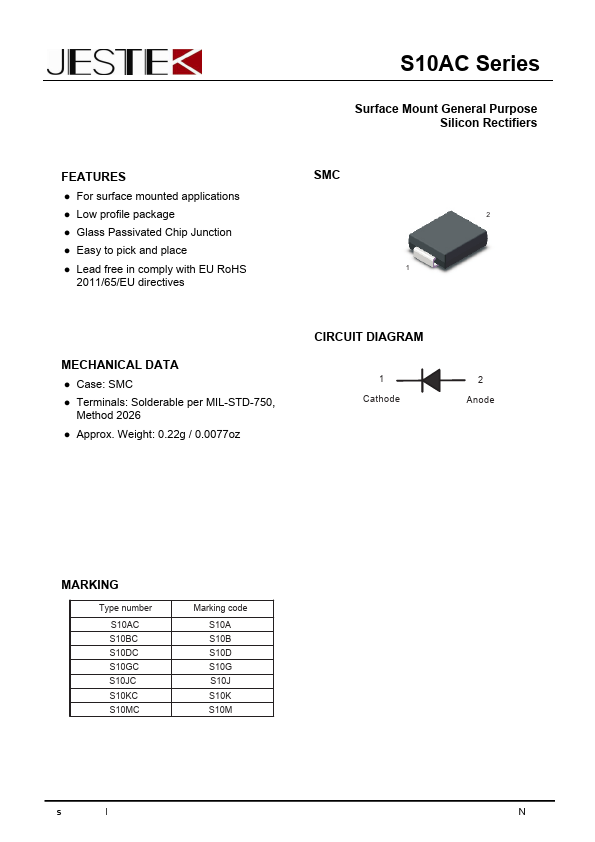

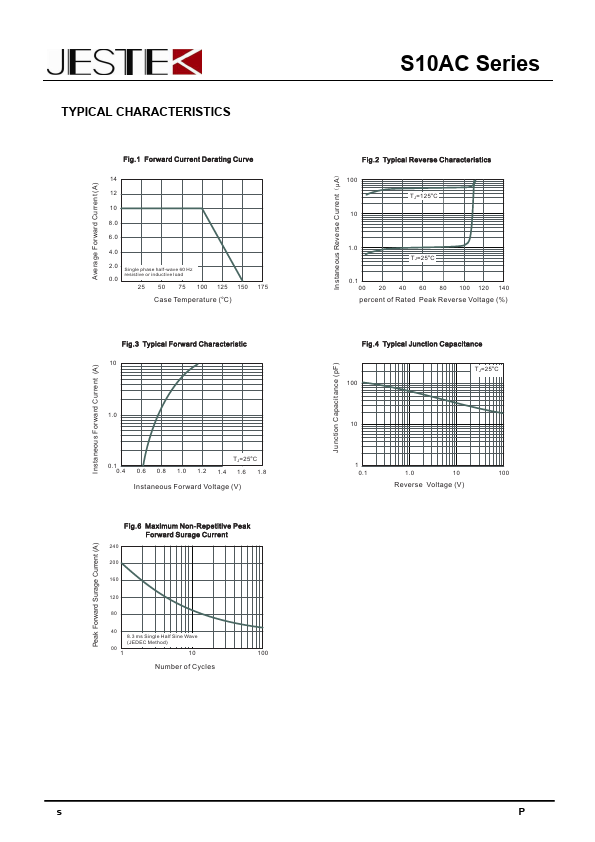

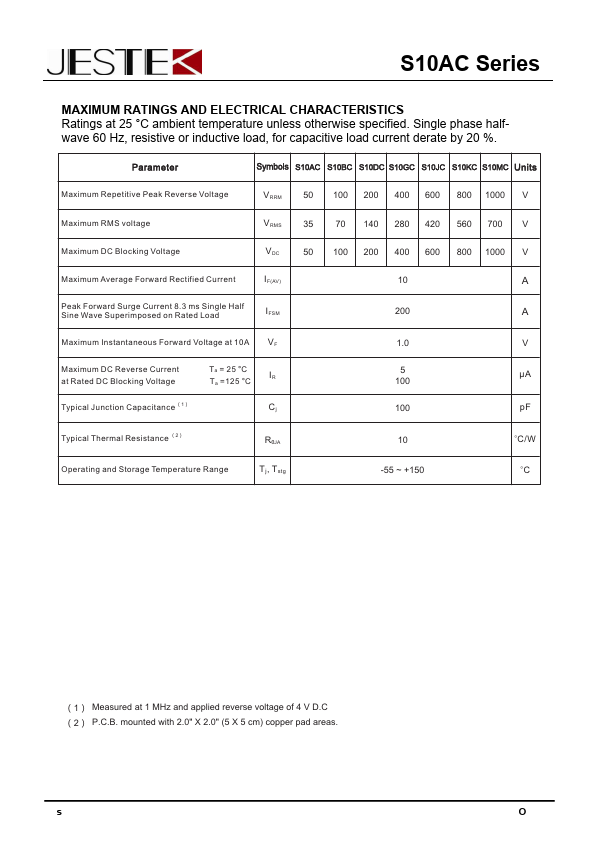

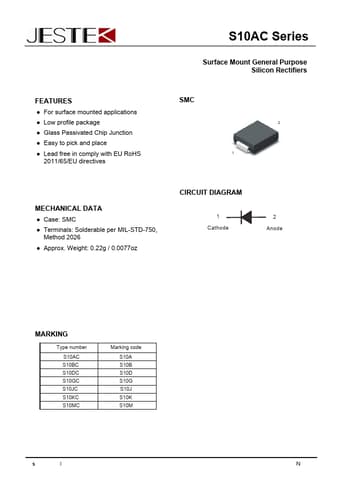

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S10BC, S10AC
Manufacturer
JESTEK
File Size
1.09 MB
Datasheet
S10AC-JESTEK.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
Note
This datasheet PDF includes multiple part numbers: S10BC, S10AC.
Please refer to the document for exact specifications by model.
