1N4148S - Silicon Epitaxial Planar Switching Diode

Product Overview

JGD

Part number	1N4148S
Manufacturer	JGD
File Size	226.64 KB
Description	Silicon Epitaxial Planar Switching Diode
Datasheet	1N4148S Datasheet

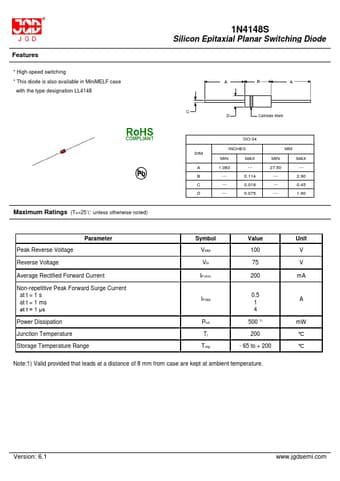

Additional preview pages of the 1N4148S datasheet.

High-speed switching.
This diode is also available in MiniMELF case with the type designation LL4148 Maximum Ratings (TA=25℃ unless otherwise noted) 1N4148S Silicon Epitaxial Planar Switching Diode ABA C D Cathode Mark DO-34 INCHES MM DIM MIN MAX MIN MAX A 1.083 --- 27.50 --- B --- 0.114 --- 2.90 C --- 0.018 --- 0.45 D --- 0.075 --- 1.90 Peak Reverse Voltage Parameter Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current at.
