1N5528, 1N5518 - 0.4W Low Voltage Avalanche Diodes

Datasheet Details

Part number	1N5528, 1N5518
Manufacturer	JGD
File Size	328.92 KB
Description	0.4W Low Voltage Avalanche Diodes
Datasheet	1N5518-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5528, 1N5518. Please refer to the document for exact specifications by model.

Low Zener noise specified.
Low Zener impedance.
Low leakage current.

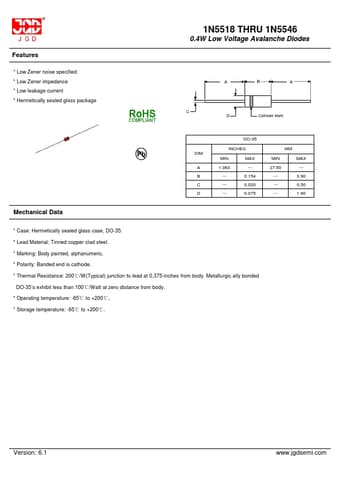

Hermetically sealed glass package 1N5518 THRU 1N5546 0.4W Low Voltage Avalanche Diodes ABA C D Cathode Mark DO-35 INCHES MM DIM MIN MAX MIN MAX A 1.083 --- 27.50 --- B --- 0.154 --- 3.90 C --- 0.020 --- 0.50 D --- 0.075 --- 1.90 Mechanical Data.
Case: Hermetically sealed glass case, DO-35.
Lead Material: Tinned copper clad steel.
Marking: Body painted, alphanumeric.

📁 1N5528 Similar Datasheet
