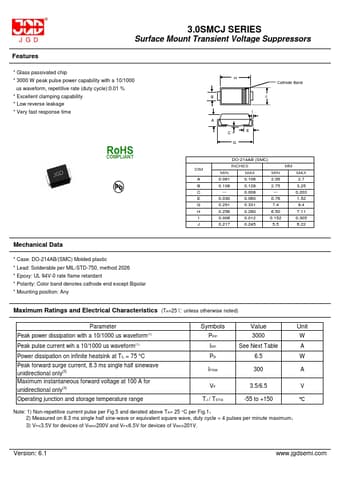

3.0SMCJ180CA, 3.0SMCJ5.0A - Surface Mount Transient Voltage Suppressors

JGD

Datasheet Details

Part number	3.0SMCJ180CA, 3.0SMCJ5.0A
Manufacturer	JGD
File Size	365.28 KB
Description	Surface Mount Transient Voltage Suppressors
Datasheet	3.0SMCJ5.0A-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: 3.0SMCJ180CA, 3.0SMCJ5.0A. Please refer to the document for exact specifications by model.

Glass passivated chip.
3000 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01 %.
Excellent clamping capability.
Low reverse leakage.
Very fast response time H B Cathode Band J I A C G E DO-214AB (SMC) INCHES MM DIM MIN MAX MIN MAX A 0.081 0.106 2.06 2.7 B 0.108 0.128 2.75 3.25 C --- 0.008 --- 0.203 E 0.030 0.060 0.76 1.52 G 0.291 0.331 7.4 8.4 H 0.256 0.280 6.50 7.11 I 0.006 0.012 0.152.
