ESD8V0CA - Transient Voltage Suppressors

Product Overview

JGD

📥 Download Datasheet

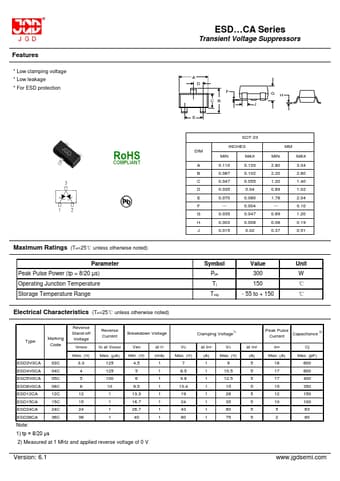

ESD8V0CA Transient Voltage Suppressors by JGD - Datasheet Preview — Datasheet preview – ESD8V0CA

Datasheet Details

Part number	ESD8V0CA
Manufacturer	JGD
File Size	160.37 KB
Description	Transient Voltage Suppressors
Datasheet	ESD8V0CA Datasheet
Note	This datasheet PDF includes multiple part numbers: ESD8V0CA, ESD3V3CA. Please refer to the document for exact specifications by model.
Additional preview pages of the ESD8V0CA datasheet.

Product details

Features

Low clamping voltage.
Low leakage.
For ESD protection ESD…CA Series Transient Voltage Suppressors A D F CB E GH J SOT-23 INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.087 0.102 2.20 2.60 C 0.047 0.055 1.20 1.40 D 0.035 0.04 0.89 1.02 E 0.070 0.080 1.78 2.04 F --- 0.004 --- 0.10 G 0.035 0.047 0.89 1.20 H 0.003 0.008 0.08 0.19 J 0.015 0.02 0.37 0.51 Maximum Ratings (TA=25℃ unless otherwise noted) Parameter Peak Pulse P.
