ESD8V0L1B-02LRH, ESD8V0L Datasheet - Infineon

ESD8V0L1B-02LRH Low Capacitance TVS Diode

Low Capacitance TVS Diode ESD / transient protection of high-speed data lines in 3.3 / 5 / 12 V applications according to: IEC61000-4-2 (ESD): up to ± 25 KV (contact) IEC61000-4-4 (EFT): 40 A (5/50 ns) IEC61000-4-5 (surge): up to 2.5 A (8/20 µs) Smallest form factor down to 1.0 x 0.6 x 0.4 mm Max. working voltage: -8 / +14 V or +8 / -14 V Very low capacitance down to 2 pF Very low reverse current < 1 nA typ. Very low series inductance d.

ESD8V0L_InfineonTechnologies.pdf

This datasheet PDF includes multiple part numbers: ESD8V0L1B-02LRH, ESD8V0L. Please refer to the document for exact specifications by model.

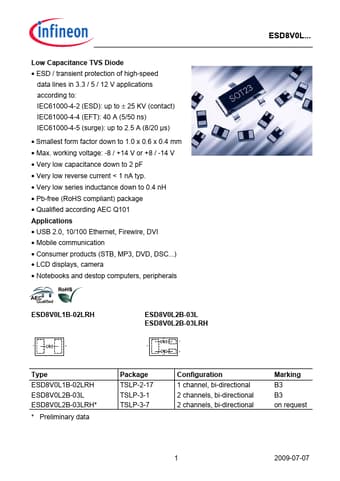

ESD8V0L1B-02LRH Datasheet Preview Page 2 ESD8V0L1B-02LRH Datasheet Preview Page 3

Datasheet Details

Part number:

ESD8V0L1B-02LRH, ESD8V0L

Manufacturer:

Infineon ↗

File Size:

561.48 KB

Description:

Low capacitance tvs diode.

Note:

This datasheet PDF includes multiple part numbers: ESD8V0L1B-02LRH, ESD8V0L.
Please refer to the document for exact specifications by model.
