ESD8V0R1B-02LS Datasheet - Infineon

ESD8V0R1B-02LS Bi-directional Low Capacitance TVS Diode

Bi-directional Low Capacitance TVS Diode ESD / transient protection of high-speed data lines in 3.3 / 5 / 12 V applications according to: IEC61000-4-2 (ESD): ±18 kV (air) ±15 kV (contact) IEC61000-4-4 (EFT): 40 A (5 / 50 ns) Extremely small form factor down to 0.62 x 0.32 x 0.31 mm³ (0201) Max. working voltage: 8 / +14 V Very low reverse current < 1 nA typ. Very low series inductance down to 0.2 nH typ. Low capacitance of 4 pF .

ESD8V0R1B-02LS-Infineon.pdf

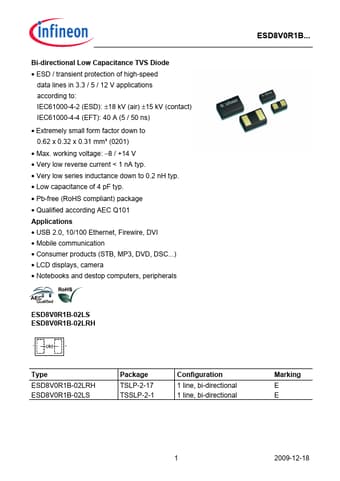

Preview of ESD8V0R1B-02LS PDF
ESD8V0R1B-02LS Datasheet Preview Page 2 ESD8V0R1B-02LS Datasheet Preview Page 3

Datasheet Details

Part number:

ESD8V0R1B-02LS

Manufacturer:

Infineon ↗

File Size:

605.46 KB

Description:

Bi-directional low capacitance tvs diode.
