ESD8004

ESD Protection Diode

ESD8004 Features

* Low Capacitance (0.35 pF Max, I/O to GND)

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

ESD8004 General Description

of survivability specs. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter VRWM IR VBR IT VHOLD IHOLD Working Peak Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT Test Current Holding Reverse Voltage Holding Reverse Current RDYN IPP VC Dynamic.

ESD8004 Datasheet (534.73 KB)

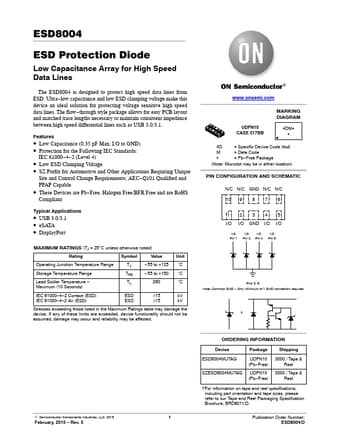

Preview of ESD8004 PDF

Datasheet Details

Part number:

ESD8004

Manufacturer:

ON Semiconductor ↗

File Size:

534.73 KB

Description:

Esd protection diode.
ESD8004 ESD Protection Diode Low Capacitance Array for High Speed Data Lines The ESD8004 is designed to protect high speed data lines from ESD. Ultr.
