ESD8472MUT5G - Ultra Low Capacitance Bi-directional TVS Diode

ESD8472MUT5G Description

ESD8472MUT5G 1-Line Ultra Low Capacitance Bi-directional TVS Diode .

ESD8472MUT5G Features

* Ultra small package: 0.6x0.3x0.3mm
* Ultra low capacitance: 0.25pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air disc

ESD8472MUT5G Applications

* Cellular Handsets and Accessories
* Display Ports
* MDDI Ports
* USB Ports
* Digital Visual Interface (DVI)
* PCI Express and Serial SATA Ports Dimensions DFN0603 1 2 Pin Configuration 1 2 Mechanical Characteristics
* Package: DFN0603
* Lead Finish: Lead Free

📥 Download Datasheet

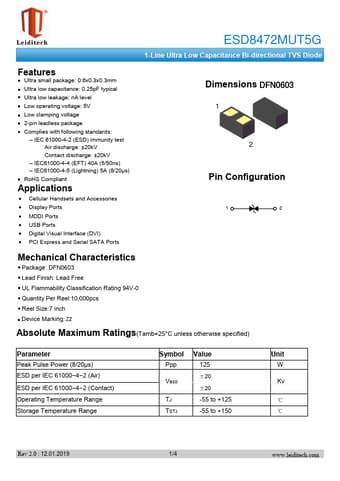

Preview of ESD8472MUT5G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESD8472MUT5G
Manufacturer
Leiditech
File Size
2.01 MB
Datasheet
ESD8472MUT5G-Leiditech.pdf
Description
Ultra Low Capacitance Bi-directional TVS Diode
