ESD8451 - ESD Protection Diodes

ESD8451 Description

DATA SHEET www.onsemi.com ESD Protection Diodes Low Capacitance ESD Protection Diode for High Speed Data Line ESD8451, SZESD8451 The ESD8451 Series.
of survivability specs. Rev.

ESD8451 Features

* Low Capacitance (0.30 pF Max, I/O to GND)
* Protection for the Following IEC Standards: IEC 61000
* 4
* 2 (Level 4) ISO10605 330 pF / 2 kW 30 kV Contact
* Low ESD Clamping Voltage

ESD8451 Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant Typical Applications
* USB 3.0
* MHL 2.0
* eSATA MAXIMUM RATINGS (TJ = 25C unless otherwise noted) R

📥 Download Datasheet

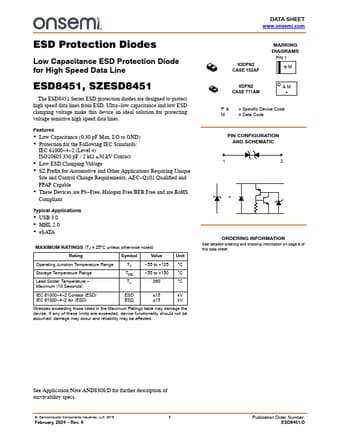

Preview of ESD8451 PDF
datasheet Preview Page 2 datasheet Preview Page 3
