ESD8016

ESD Protection Diode

ESD8016 Features

* Low Capacitance (0.32 pF Max, I/O to GND)

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

* These Devices are Pb

* Free, Halogen Free/BFR Free and are RoHS Compliant Typical Applications

ESD8016 General Description

of survivability specs. © Semiconductor Components Industries, LLC, 2015 1 October, 2017

* Rev. 1 Publication Order Number: ESD8016/D = ESD8016 I/O I/O I/O I/O I/O I/O Pin 1 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pins 2, 3 Note: Common GND

* Only Minimum of 1 GND connection required Fig.

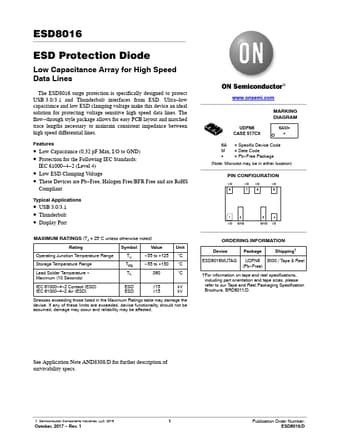

ESD8016 Datasheet (721.66 KB)

Preview of ESD8016 PDF

Datasheet Details

Part number:

ESD8016

Manufacturer:

ON Semiconductor ↗

File Size:

721.66 KB

Description:

Esd protection diode.
ESD8016 ESD Protection Diode Low Capacitance Array for High Speed Data Lines The ESD8016 surge protection is specifically designed to protect USB 3.0.
