ESD8018 Datasheet - ON Semiconductor

ESD8018 ESD Protection Diode

of survivability specs. © Semiconductor Components Industries, LLC, 2015 July, 2019 * Rev. 3 1 Publication Order Number: ESD8018/D ESD8018 I/O Pin 1 I/O Pin 3 I/O Pin 4 I/O Pin 6 I/O Pin 7 I/O Pin 8 I/O I/O Pin 9 Pin 10 Pin 2 Note: Common GND * Only Minimum of 1 GND conne.
ESD8018 ESD Protection Diode Low Capacitance Array for High Speed Data Lines The ESD8018 surge protection is specifically designed to protect four high speed data points from ESD. Ultra low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential li.

ESD8018 Features

* Low Capacitance (0.32 pF Max, I/O to GND)

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4) IEC 61000

* 4

* 5 (Lightning) 5A (8/20 ms)

* Low ESD Clamping Voltage

* These Devices are Pb

* Free, Halogen Free/BFR Fr

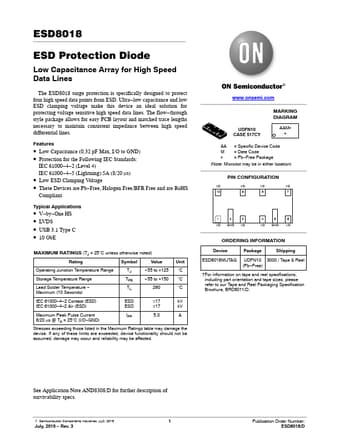

ESD8018 Datasheet (276.17 KB)

Preview of ESD8018 PDF

Datasheet Details

Part number:

ESD8018

Manufacturer:

ON Semiconductor ↗

File Size:

276.17 KB

Description:

Esd protection diode.
