ESD8006

ESD Protection Diode

ESD8006 Features

* Low Capacitance (0.25 pF Max, I/O to GND)

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101 Quali

ESD8006 General Description

of survivability specs. MARKING DIAGRAM UDFN8 CASE 517CB 1 6TMG G 6T = Specific Device Code M = Date Code G = Pb

*Free Package (Note: Microdot may be in either location) PIN CONFIGURATION GND 10 GND 9 123456 78 I/O I/O GND I/O I/O GND I/O I/O ORDERING INFORMATION Device Package Sh.

ESD8006 Datasheet (1.28 MB)

Preview of ESD8006 PDF

Datasheet Details

Part number:

ESD8006

Manufacturer:

ON Semiconductor ↗

File Size:

1.28 MB

Description:

Esd protection diode.

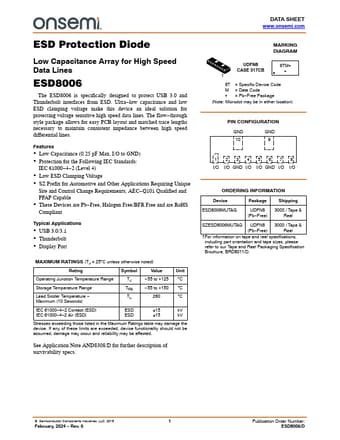

DATA SHEET www.onsemi.com ESD Protection Diode Low Capacitance Array for High Speed Data Lines ESD8006 The ESD8006 is specifically designed to prote.
