RL201 - 2.0 Amps Silicon Rectifiers

JGD

📥 Download Datasheet

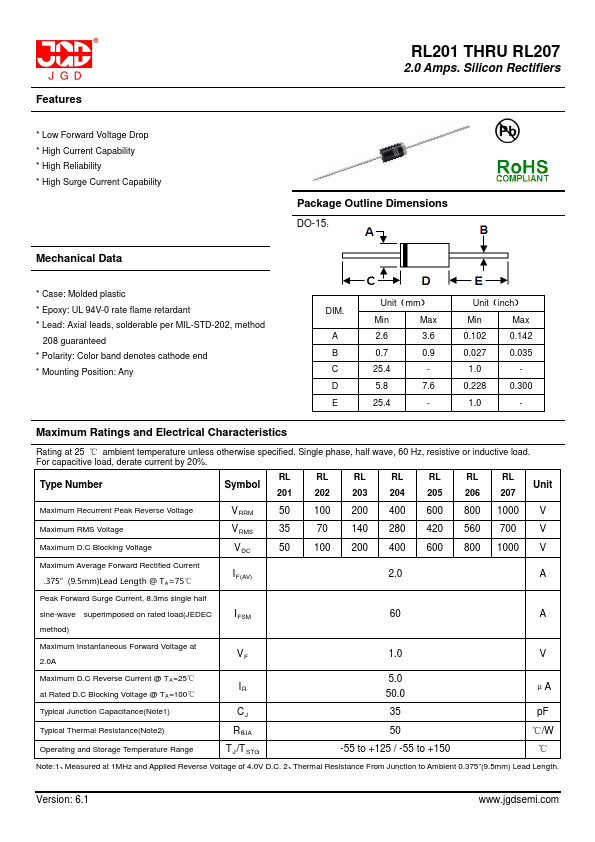

RL201 Datasheet Preview — Preview of RL201 PDF

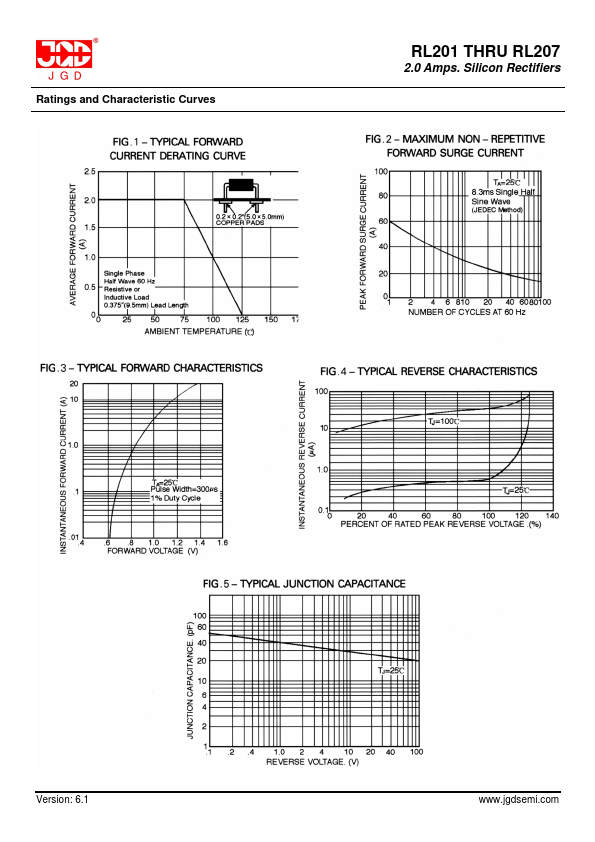

datasheet Preview Page 2

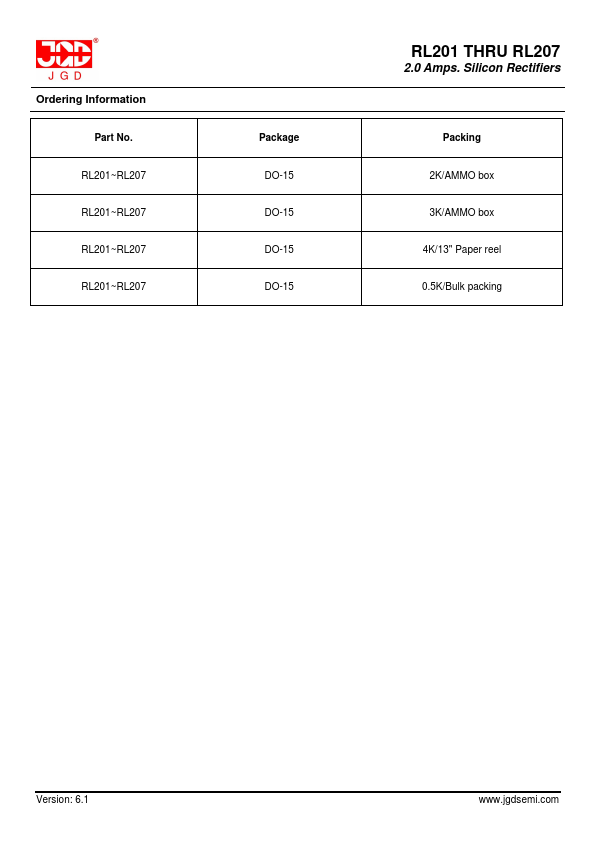

datasheet Preview Page 3

Datasheet Details

Part number	RL201
Manufacturer	JGD
File Size	399.69 KB
Description	2.0 Amps Silicon Rectifiers
Datasheet	RL201-JGD.pdf

RL201 Product details

Features

RL201 THRU RL207 2.0 Amps. Silicon Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions DO-15：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.
