RL203, RL201 - 2.0 Amps Silicon Rectifiers

JGD

📥 Download Datasheet

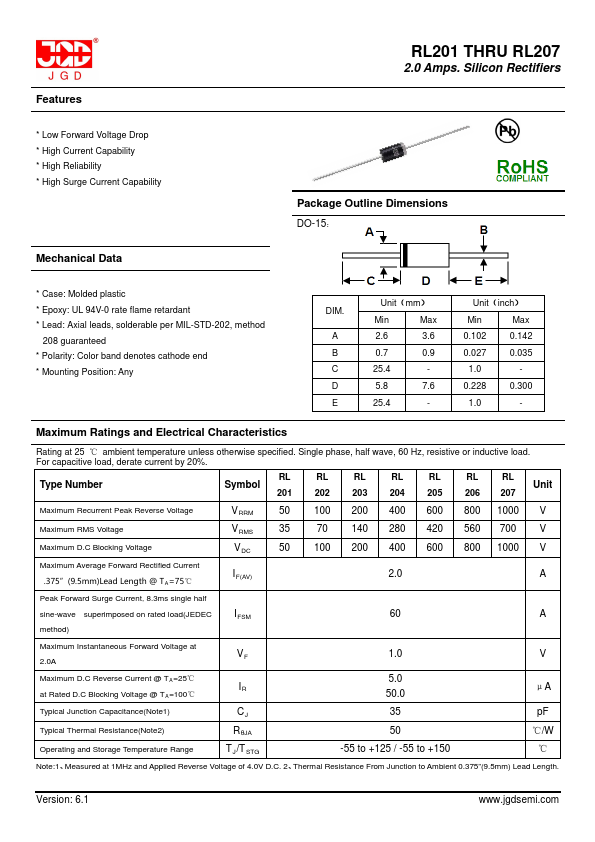

RL203 Datasheet Preview — This datasheet PDF includes multiple part numbers: RL203, RL201. Please refer to the document for exact specifications by model.

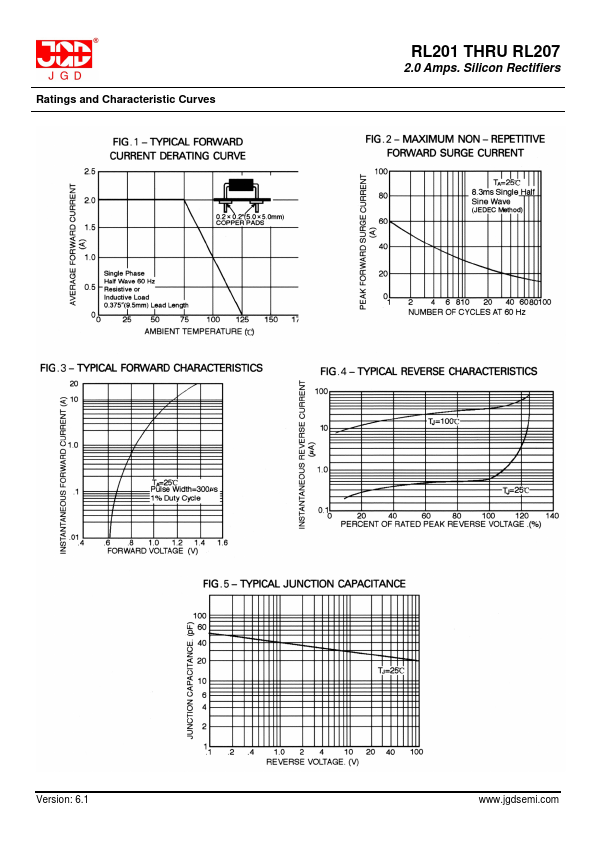

datasheet Preview Page 2

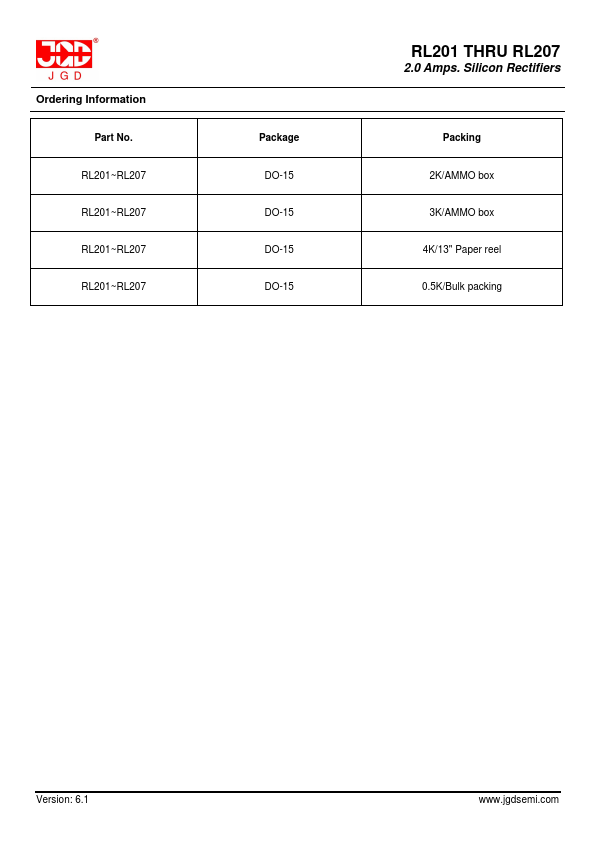

datasheet Preview Page 3

Datasheet Details

Part number	RL203, RL201
Manufacturer	JGD
File Size	399.69 KB
Description	2.0 Amps Silicon Rectifiers
Datasheet	RL201-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: RL203, RL201. Please refer to the document for exact specifications by model.

RL203 Product details

Features

RL201 THRU RL207 2.0 Amps. Silicon Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions DO-15：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.
