S2GBF Surface Mount General Purpose Silicon Rectifiers

S2GBF Description

.

S2GBF Features

* S2ABF THRU S2MBF Surface Mount General Purpose Silicon Rectifiers

S2GBF Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place A C B DE
* High Temp Soldering: 260℃ for 10seconds at Terminals G F DIM. A B C D E F G SMBF INCHES MIN 0.201 0.138 0.165 0.075 0.043 0.007 0.031 MAX 0.217 0.146 0.173 0.087 0.051 0.010 0.047 Mec

📥 Download Datasheet

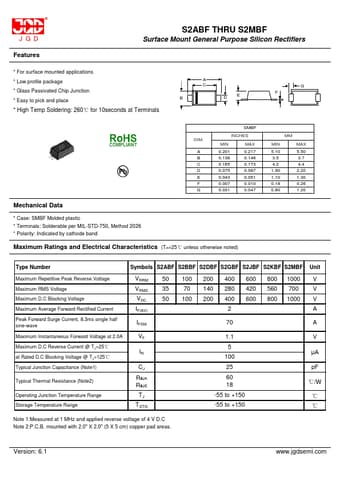

Preview of S2GBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2GBF
Manufacturer
JGD
File Size
136.73 KB
Datasheet
S2GBF-JGD.pdf
Description
Surface Mount General Purpose Silicon Rectifiers
