SB1030F - Isolated Schottky Barrier Rectifiers

Product Overview

JGD

Part number	SB1030F
Manufacturer	JGD
File Size	231.68 KB
Description	Isolated Schottky Barrier Rectifiers
Datasheet	SB1030F Datasheet
Note	This datasheet PDF includes multiple part numbers: SB1030F, SB1020F. Please refer to the document for exact specifications by model.

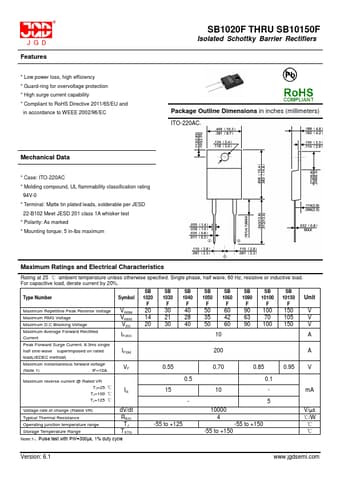

Additional preview pages of the SB1030F datasheet.

Low power loss, high efficiency.
Guard-ring for overvoltage protection.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC SB1020F THRU SB10150F Isolated Schottky Barrier Rectifiers Package Outline Dimensions in inches (millimeters) ITO-220AC： Mechanical Data.
Case: ITO-220AC.
Molding compound, UL flammability classification rating 94V-0.
Terminal: Matte tin plated leads, solderable per JESD 22-B102 Mee.
