SB20100 - Schottky Barrier Rectifiers

Product Overview

JGD

Part number	SB20100
Manufacturer	JGD
File Size	243.44 KB
Description	Schottky Barrier Rectifiers
Datasheet	SB20100 Datasheet
Note	This datasheet PDF includes multiple part numbers: SB20100, SB2020. Please refer to the document for exact specifications by model.

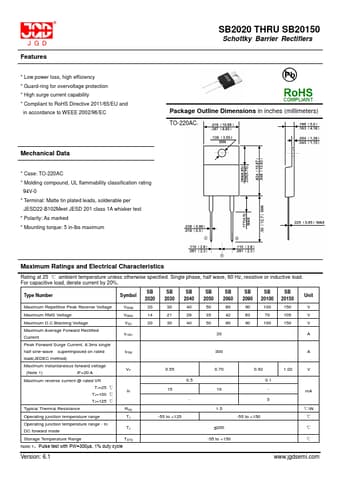

Additional preview pages of the SB20100 datasheet.

Low power loss, high efficiency.
Guard-ring for overvoltage protection.
High surge current capability.
Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC SB2020 THRU SB20150 Schottky Barrier Rectifiers Package Outline Dimensions in inches (millimeters) TO-220AC： Mechanical Data.
Case: TO-220AC.
Molding compound, UL flammability classification rating 94V-0.
Terminal: Matte tin plated leads, solderable per JESD22-B102Meet JESD 201 clas.
