SL210, SL22 - Surface Mount Schottky Barrier Rectifiers

SL210 Description

.

SL210 Features

* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Meets environmental standard MIL-S-19500D
* Moisture sensitivity:level 1, per J-STD-020
* Solder dip 260℃, 10 s SL22 thru SL210 Surface Mount Schottky Barrier Rectifiers AC B G D E Cathode

SL210 Applications

* For use in general purpose rectification of lighting, power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. Mechanical Data
* Case: DO-214AA, molded epoxy body
* Epoxy meets UL 94V-0 flammability rating
* Terminals: Matte tin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SL210, SL22. Please refer to the document for exact specifications by model.

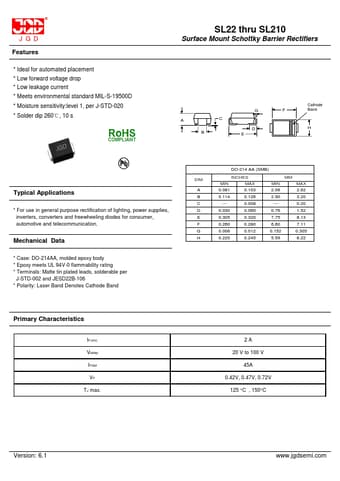

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SL210, SL22
Manufacturer
JGD
File Size
236.69 KB
Datasheet
SL22-JGD.pdf
Description
Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SL210, SL22.
Please refer to the document for exact specifications by model.
