SL2101, SL2 Datasheet - Zarlink Semiconductor Inc

SL2101 Synthesized Broadband Converter with Programmable Power

The SL2101 is a fully integrated single chip broadband mixer oscillator with low phase noise PLL frequency synthesizer. It is intended for use in double conversion tuners as both the up and down converter and is compatible with HIIF frequencies up to 1.4 GHz and all standard tuner IF output frequenc.

SL2101 Features

* Single chip synthesized broadband solution Configurable as both up converter and downconverter requirements in double conversion tuner applications Incorporates 8 programmable mixer power settings Compatible with digital and analogue system requirements CSO -65 dBc, CTB -68 dBc (

SL2-101.pdf

This datasheet PDF includes multiple part numbers: SL2101, SL2. Please refer to the document for exact specifications by model.

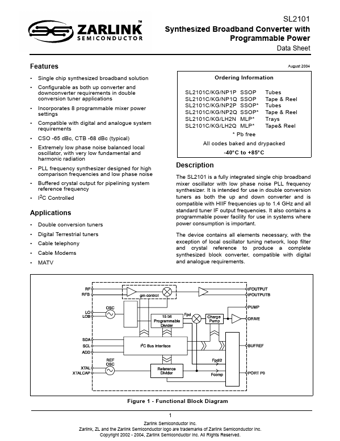

SL2101 Datasheet Preview Page 2 SL2101 Datasheet Preview Page 3

Datasheet Details

Part number:

SL2101, SL2

Manufacturer:

Zarlink Semiconductor Inc

File Size:

625.72 KB

Description:

Synthesized broadband converter with programmable power.

Note:

This datasheet PDF includes multiple part numbers: SL2101, SL2.
Please refer to the document for exact specifications by model.
