SL2009

Dual stage IF amplifier

SL2009 Features

* Single chip solution for tuner IF gain and AGC Contains 34 dB of AGC shared between two AGC stages Design optimised for high signal handling with low inter-modulation spurious generation I/O ports optimised to interface with standard SAW filters ESD p

SL2009 General Description

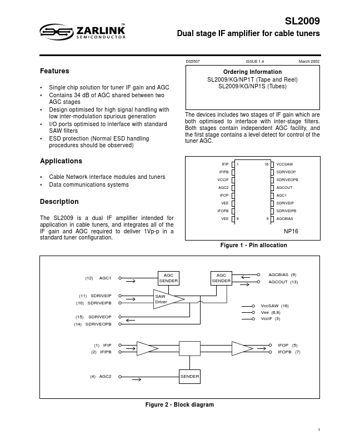

The SL2009 is a dual IF amplifier intended for application in cable tuners, and integrates all of the IF gain and AGC required to deliver 1Vp-p in a standard tuner configuration. VEE IFOPB VEE 8 9 AGCBIAS NP16 Figure 1 - Pin allocation (12) AGC1 AGC SENDER AGC SENDER AGCBIAS (9) AGCOUT (13) (.

SL2009 Datasheet (229.54 KB)

Preview of SL2009 PDF

Datasheet Details

Part number:

SL2009

Manufacturer:

Zarlink Semiconductor Inc

File Size:

229.54 KB

Description:

Dual stage if amplifier.
