SL2017 Full Band Satellite Tuner

The SL2017 is a downconverter mixer with an output AGC amplifier, which when used with appropriate external varactor tuned oscillator performs the first IF tuning function for a full band satellite receiver system. A block diagram is contained in Fig. 2. In application the RF input of the device is .

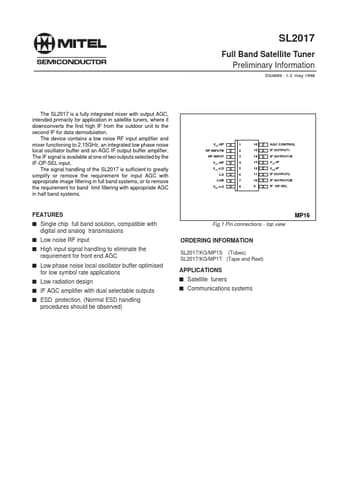

SL2017 Full Band Satellite Tuner Preliminary Information DS4889 - 1.2 may 1998 The SL2017 is a fully integrated mixer with output AGC, intended primarily for application in satellite tuners, where it downconverts the first high IF from the outdoor unit to the second IF for data demodulation. The device contains a low noise RF input amplifier and mixer functioning to 2.15GHz, an integrated low phase noise local oscillator buffer and an AGC IF output buffer amplifier. The IF signal is available a.

SL2017 Features

* s Single chip full band solution, compatible with digital and analog transmissions s Low noise RF input s High input signal handling to eliminate the requirement for front end AGC s Low phase noise local oscillator buffer optimised for low symbol rate applications s Low radiation design s IF AGC amp
