SL2524 Datasheet, Amplifier, Mitel Networks Corporation

SL2524 Features

  • Amplifier s s s s s s 1.3GHz Bandwidth (-3dB) Balanced IF limiting 3ns Rise Times/5ns Fall Times (six stages) 20ns Pulse Handling (six stages) Temperature Stabilised Surface Mountable APPLICATIO

PDF File Details

Part number:

SL2524

Manufacturer:

Mitel Networks Corporation

File Size:

377.40kb

Download:

📄 Datasheet

Description:

1.3ghz dual wideband logarithmic amplifier. SUB VEE IF OUTPUT (A) IF OUTPUT (A) VEE (A) OUTPUT VC (A) IF INPUT (A) IF INPUT (A) VCC (A) DET. OUTPUT (A) R SET (A) PIN 11 12 13 1

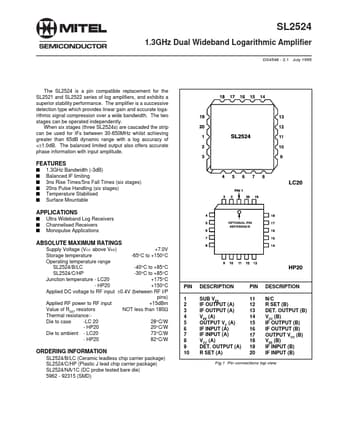

Datasheet Preview: SL2524 📥 Download PDF (377.40kb)
Page 2 of SL2524 Page 3 of SL2524

SL2524 Application

  • Applications s s s Ultra Wideband Log Receivers Channelised Receivers Monopulse Applications OPTIONAL PIN REFERENCE ABSOLUTE MAXIMUM RATINGS Supply
