SL25B, SL22B-GOOD Datasheet - GOOD-ARK

SL25B, SL22B-GOOD, Surface Mount Schottky Rectifier

SL22B thru SL210B Surface Mount Schottky Rectifier Reverse Voltage 20 - 100V Forward Current 2A .

SL22B-GOOD-ARK.pdf

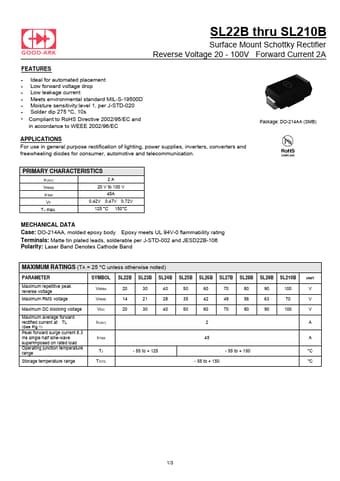

SL25B Datasheet Preview — This datasheet PDF includes multiple part numbers: SL25B, SL22B-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SL25B, SL22B-GOOD

Manufacturer:

GOOD-ARK

File Size:

431.63 KB

Description:

Surface Mount Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: SL25B, SL22B-GOOD.
Please refer to the document for exact specifications by model.

Features

* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Meets environmental standard MIL-S-19500D
* Moisture sensitivity:level 1, per J-STD-020
* Solder dip 275 °C, 10s
* Compliant to RoHS Directive 2002/95/EC and in

Applications

* For use in general purpose rectification of lighting, power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 2A 20 V to 100 V 45A 0.42V 0.47V 0.72V 125 °C 150°C MECHANICAL DATA Case: DO-214
