SL2015 - Full Band Satellite Tuner

The SL2015 is a downconverter mixer oscillator with an output AGC amplifier, when used with appropriate external varactor tuned oscillator sustaining network performs the first IF tuning function for a full band satellite receiver system. A block diagram is contained in Fig. 2. In application the RF.

SL2015 Full Band Satellite Tuner Advance Information Supersedes April 1997 version, DS4548 - 2.1 DS4593 - 3.2 February 1998 The SL2015 is a fully integrated mixer oscillator with output AGC, intended primarily for application in satellite tuners, where it downconverts the first high IF from the outdoor unit to the second IF for data demodulation. The device contains a low noise RF input amplifier and mixer functioning to 2.15GHz, an integrated low phase noise local oscillator and an AGC IF outp.

SL2015 Features

* s Single chip full band solution, compatible with digital and analog transmissions s Low noise RF input s High input signal handling to eliminate the requirement for front end AGC s Low phase noise local oscillator s No prescaler in LO output drive, optimal architecture for low phase noise applicati

SL2015_MitelNetworksCorporation.pdf

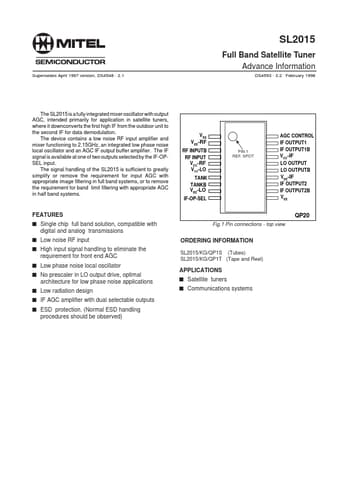

SL2015 Datasheet Preview — Preview of SL2015 PDF

Datasheet Details

Part number:

SL2015

Manufacturer:

Mitel Networks Corporation

File Size:

181.69 KB

Description:

Full band satellite tuner.
