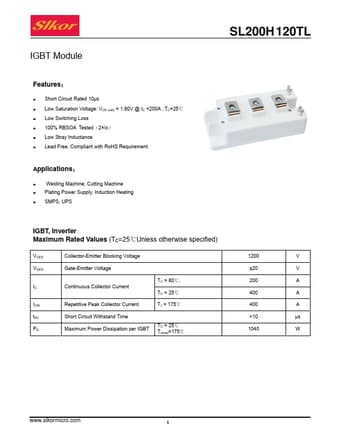

SL200H120TL Datasheet, Igbt, Slkor

SL200H120TL Features

• Igbt z Short Circuit Rated 10μs z Low Saturation Voltage: VCE (sat) = 1.80V @ IC =200A , TC=25℃ z Low Switching Loss z 100% RBSOA Tested（2×Ic） z Low Stray Inductance z Lead Free, Compliant

PDF File Details

Part number:

SL200H120TL

Manufacturer:

Slkor

File Size:

478.60kb

Download:

📄 Datasheet

Description:

Igbt. Conditions Min Typ VGE(th) Gate-Emitter Threshold Voltage IC = 1 mA, VCE = VGE 5.0 5.5

SL200H120TL Application

• Applications z Welding Machine, Cutting Machine z Plating Power Supply, Induction Heating z SMPS, UPS SL200H 120TL IGBT, Inverter Maximum Rated V
