SL2301

P-CHANNEL MOSFET

SL2301 Features

* VDS = -20V,ID = -2.8A RDS(ON) < 142mΩ @ VGS=-2.5V RDS(ON) < 112mΩ @ VGS=-4.5V

* High power and current handing capability

* Lead free product is acquired

* Surface mount package Application

* DC/DC Converter

* Load switch SL2301 D G S Schematic diagram A1 Marking and pin a

SL2301 Datasheet (403.01 KB)

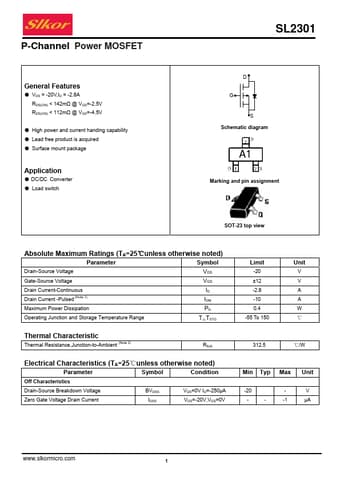

Preview of SL2301 PDF

Datasheet Details

Part number:

SL2301

Manufacturer:

Slkor

File Size:

403.01 KB

Description:

P-channel mosfet.
