SL2305

Low Jitter and Skew 10 to 140 MHz Zero Delay Buffer

SL2305 Features

* 10 to 140 MHz operating frequency range

* Low output clock jitter: - 140 ps-max c-c-j at 66 MHz

* Low output-to-output skew: 150 ps-max

* Low product-to-product skew: 400 ps-max

* 3.3 V power supply range

* Low power dissipation: - 14 mA-max at 66MHz

SL2305 General Description

The SL2305 is a low skew, low jitter and low power Zero Delay Buffer (ZDB) designed to produce up to five (5) clock outputs from one (1) reference input clock for high speed clock distribution applications. The product has an on-chip PLL which locks to the input clock at CLKIN and receives its feedb.

SL2305 Datasheet (120.76 KB)

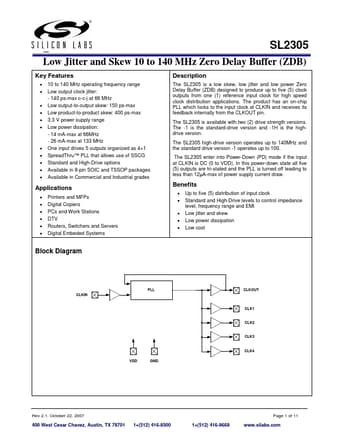

Preview of SL2305 PDF

Datasheet Details

Part number:

SL2305

Manufacturer:

Silicon Laboratories

File Size:

120.76 KB

Description:

Low jitter and skew 10 to 140 mhz zero delay buffer.
