SL23

Surface Mount Schottky Barrier Rectifier

SL23 Features

* For surface mounted application

* Low forward voltage drop

* High forward surge current capability

* The plastic package carries U/L Classification 94V-0 Mechanical Data

* Case: (SMB)DO-214AA molded plastic body

* Terminal: Solder plated, solderable

SL23 Datasheet (426.03 KB)

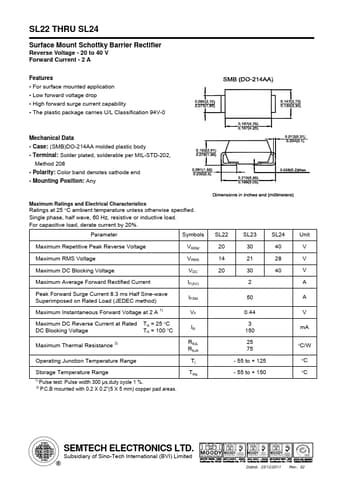

Preview of SL23 PDF

Datasheet Details

Part number:

SL23

Manufacturer:

SEMTECH

File Size:

426.03 KB

Description:

Surface mount schottky barrier rectifier.
