SL2304NZ

Low Jitter and Skew DC to 140MHz Clock Buffer

SL2304NZ Features

* DC to 140 MHz operating frequency range

* Low output clock skew: 50ps-typ

* Low part-to-part output skew: 100 ps-typ

* Low output propogation delay: 2.5ns-typ

* 3.3V +/-10% operation supply voltage

* Low power dissipation:

* - 7 mA-typ at 33M

SL2304NZ General Description

The SL2304NZ is a low skew, jitter and power fanout Buffer designed to produce up to four (4) clock outputs from one (1) reference input clock, for high speed clock distribution, including PCI/PCI-X applications. The SL2304NZ products operate from DC to 140MHz. The only difference between SL2304NZ-1.

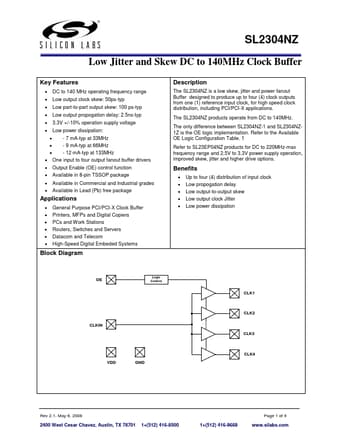

SL2304NZ Datasheet (107.86 KB)

Preview of SL2304NZ PDF

Datasheet Details

Part number:

SL2304NZ

Manufacturer:

Silicon Laboratories

File Size:

107.86 KB

Description:

Low jitter and skew dc to 140mhz clock buffer.
