SS16F, SS12F 1.0 Amp. Surface Mount Schottky Barrier Rectifiers

SS16F Description

SS12F THRU SS120F 1.0 Amp.Surface Mount Schottky Barrier Rectifiers .

SS16F Features

* Low power loss, high efficiency
* Ideal for automated placement
* Guardring for overvoltage protection
* High surge current capability
* High Temp Soldering: 260℃ for 10seconds at Terminals A C B DE G F DIM. A B C D E F G SMAF INCHES MIN MAX 0.173 0.193 0.094 0.106

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS16F, SS12F. Please refer to the document for exact specifications by model.

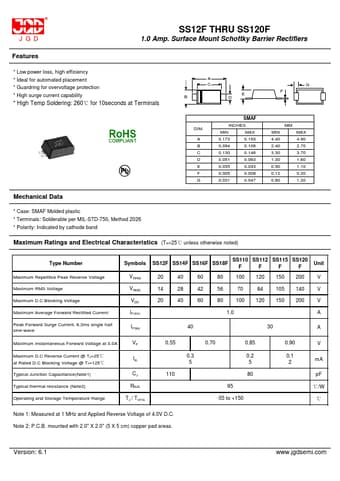

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS16F, SS12F
Manufacturer
JGD
File Size
165.80 KB
Datasheet
SS12F-JGD.pdf
Description
1.0 Amp. Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS16F, SS12F.
Please refer to the document for exact specifications by model.
