ZPD27, ZPD1 - Silicon Epitaxial Planar Zener Diodes

JGD

Datasheet Details

Part number	ZPD27, ZPD1
Manufacturer	JGD
File Size	125.97 KB
Description	Silicon Epitaxial Planar Zener Diodes
Datasheet	ZPD1-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: ZPD27, ZPD1. Please refer to the document for exact specifications by model.

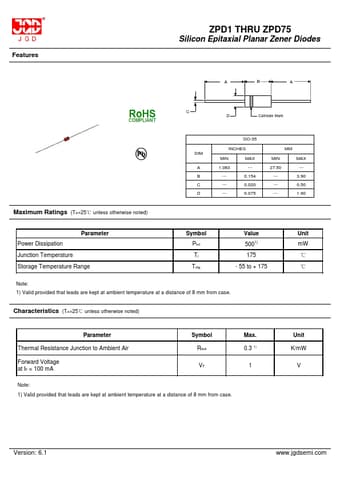

ZPD1 THRU ZPD75 Silicon Epitaxial Planar Zener Diodes ABA C D Cathode Mark Maximum Ratings (TA=25℃ unless otherwise noted) DO-35 INCHES MM DIM MIN MAX MIN MAX A 1.083 --- 27.50 --- B --- 0.154 --- 3.90 C --- 0.020 --- 0.50 D --- 0.075 --- 1.90 Power Dissipation Parameter Junction Temperature Storage Temperature Range Symbol Ptot Tj Tstg Value 5001) 175 - 55 to + 175 Note: 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case. Chara.
