DTC114YE - Digital transistors

Product Overview

JIANGSU CHANGJIANG ELECTRONICS

📥 Download Datasheet

DTC114YE Digital transistors by JIANGSU CHANGJIANG ELECTRONICS - Datasheet Preview — Datasheet preview – DTC114YE

Datasheet Details

Part number	DTC114YE
Manufacturer	JIANGSU CHANGJIANG ELECTRONICS
File Size	111.25 KB
Description	Digital transistors
Datasheet	DTC114YE Datasheet

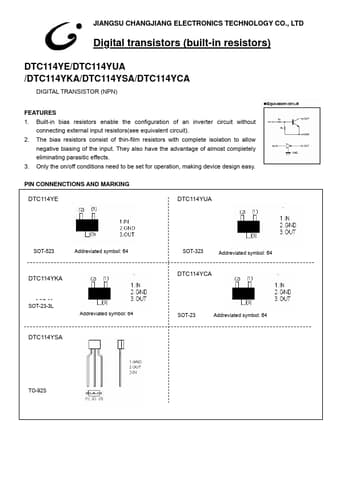

Additional preview pages of the DTC114YE datasheet.

Product details

Features

1. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2. The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3. Only the on/off conditions need to be set for operation, making device design easy. PIN.
