Part number:
6AJ22A
Manufacturer:
JIEJIE
File Size:
265.32 KB
Description:

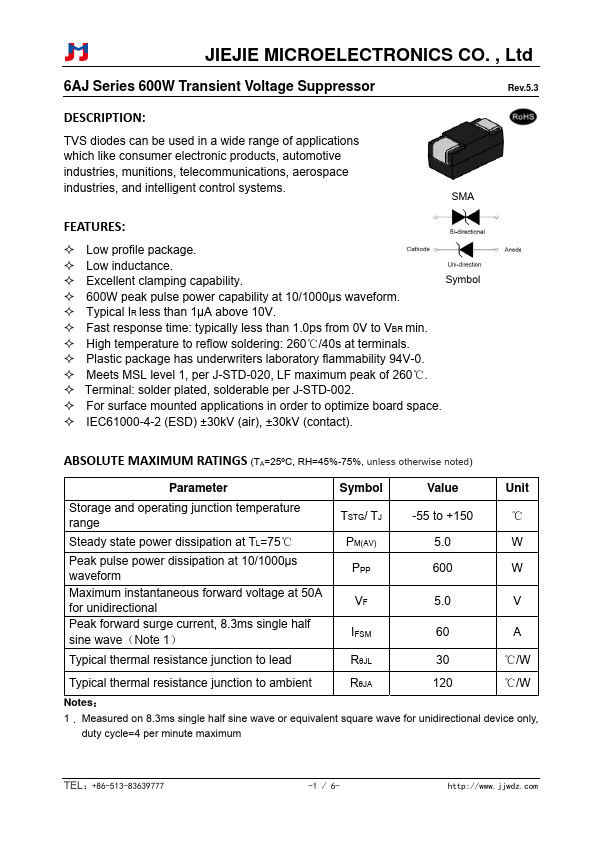

600w transient voltage suppressor.
6AJ22A
JIEJIE
265.32 KB
600w transient voltage suppressor.
* SMA
* Low profile package.
* Low inductance.
* Excellent clamping capability.
* 600W peak pulse power capability at 10×1000μs waveform. Symbol
* Typical IR less than 1μA above 10V.
* Fast response time: typically less than 1.0ps from 0V to VBR
