6AJ24A

600W Transient Voltage Suppressor

6AJ24A Datasheet (265.32 KB)

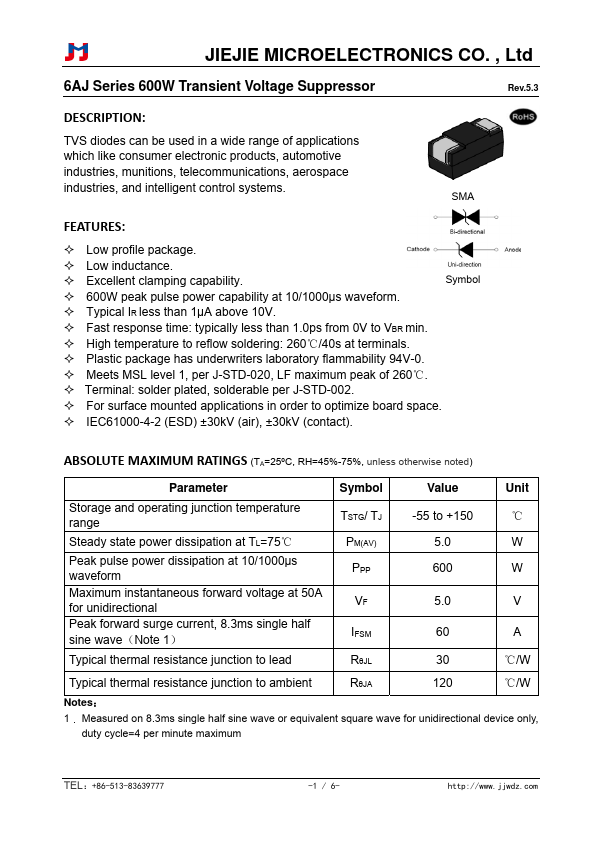

Preview of 6AJ24A PDF Datasheet

Datasheet Details

Part number:

6AJ24A

Manufacturer:

JIEJIE

File Size:

265.32 KB

Description:

600w transient voltage suppressor

6AJ24A Features

*                       SMA

* Low profile package.

* Low inductance.

* Excellent clamping capability.

* 600W peak pulse power capability at 10×1000μs waveform. Symbol

* Typical IR less than 1μA above 10V.

* Fast response time: typically less than 1.0ps from 0V to VBR

6AJ24A General Description

    TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.   FEATURES:                      SMA
*Low profile package.
*Low inductanc.

📁 Related Datasheet

6AJ24CA - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

6AJ20A - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

6AJ20CA - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

6AJ22A - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

6AJ22CA - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

6AJ26A - 600W Transient Voltage Suppressor (JIEJIE)
JIEJIE MICROELECTRONICS CO. , Ltd 6AJ Series 600W Transient Voltage Suppressor Rev.5.1 DESCRIPTION:    TVS diodes can be used in a wide range of .

TAGS

6AJ24A 600W Transient Voltage Suppressor JIEJIE

Image Gallery

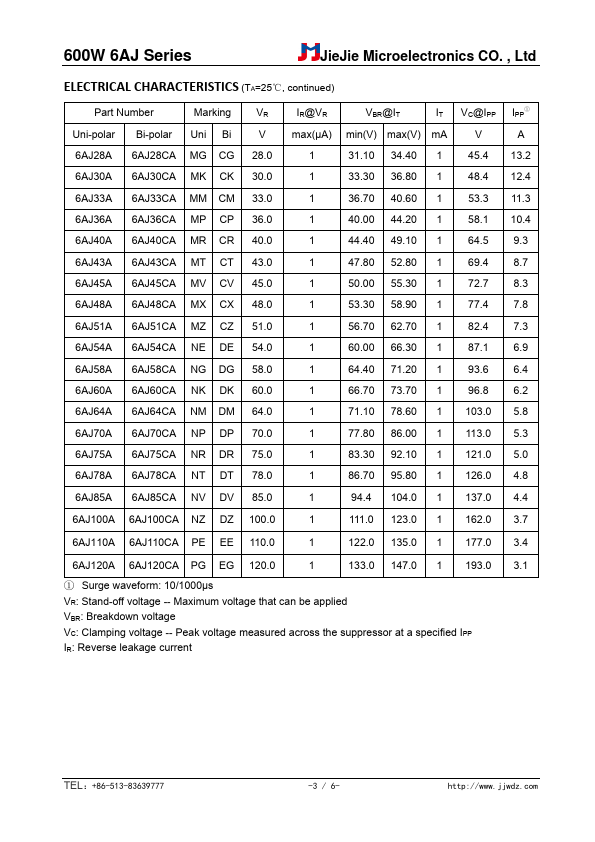

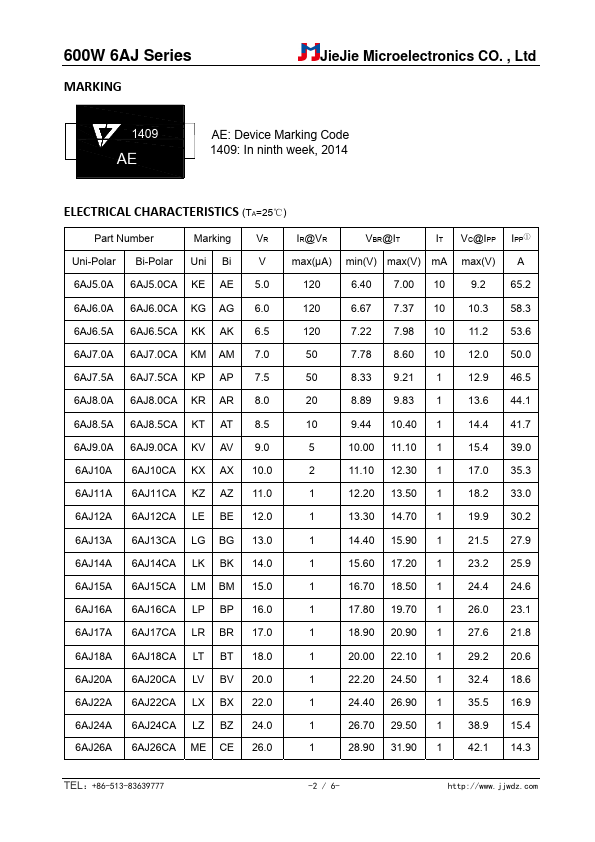

6AJ24A Datasheet Preview Page 2 6AJ24A Datasheet Preview Page 3
