6AJ5.0A - 600W Transient Voltage Suppressor

JIEJIE

6AJ5.0A Datasheet Preview — Preview of 6AJ5.0A PDF

Datasheet Details

Part number	6AJ5.0A
Manufacturer	JIEJIE
File Size	246.00 KB
Description	600W Transient Voltage Suppressor
Datasheet	6AJ5.0A-JIEJIE.pdf

6AJ5.0A Product details

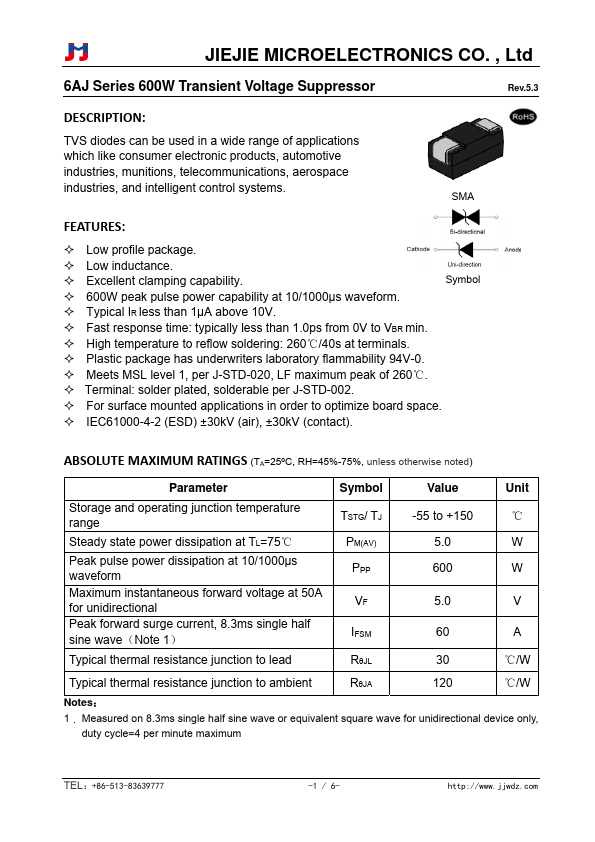

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

Low profile package.
Low inductance.
Excellent clamping capability. Symbol.
600W peak pulse power capability at 10/1000μs waveform.
Typical IR less than 1μA above 10V.
Fast response time: typically less than 1.0ps from 0V to VBR min. .
High temperature to reflow soldering: 260℃/40s at terminals. .
Plastic package has underwriters laboratory flammability 94V-0.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.
Terminal:.
