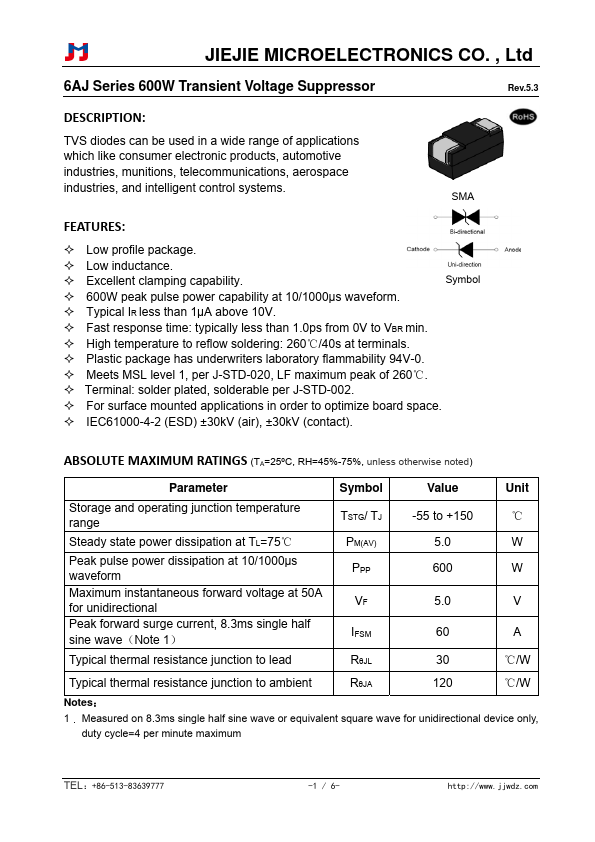

6AJ54A Features
* SMA
* Low profile package.
* Low inductance.
* Excellent clamping capability.
* 600W peak pulse power capability at 10×1000μs waveform. Symbol
* Typical IR less than 1μA above 10V.
* Fast response time: typically less than 1.0ps from 0V to VBR
Datasheet Details
6AJ54A, 6AJ5.0A
JIEJIE
265.32 KB
600w transient voltage suppressor.
This datasheet PDF includes multiple part numbers: 6AJ54A, 6AJ5.0A.
Please refer to the document for exact specifications by model.
