JCT1625A, JCT1625 Datasheet - JIEJIE

JCT1625A - 25A SCRs

JCT1625 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. .

JCT1625A Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1625 1600V 25A ≤35mA ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Tj VDRM VRRM Non repetitive surg

JCT1625-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT1625A, JCT1625. Please refer to the document for exact specifications by model.

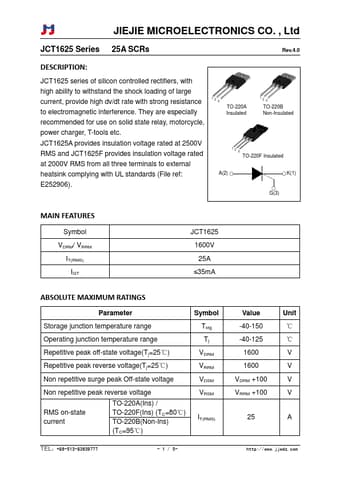

JCT1625A Datasheet Preview Page 2 JCT1625A Datasheet Preview Page 3

Datasheet Details

Part number:

JCT1625A, JCT1625

Manufacturer:

JIEJIE

File Size:

348.07 KB

Description:

25a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT1625A, JCT1625.
Please refer to the document for exact specifications by model.
