JCT1655Z, JCT1655, 55A SCRs

JIEJIE MICROELECTRONICS CO., Ltd JCT1655 Series 55A SCRs Rev.4.0 .
JCT1655 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with s.

JCT1655-JIEJIE.pdf

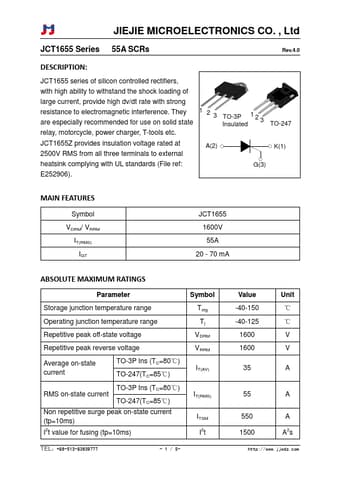

JCT1655Z Datasheet Preview — This datasheet PDF includes multiple part numbers: JCT1655Z, JCT1655. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JCT1655Z, JCT1655

Manufacturer:

JIEJIE

File Size:

359.20 KB

Description:

55A SCRs

Note:

This datasheet PDF includes multiple part numbers: JCT1655Z, JCT1655.
Please refer to the document for exact specifications by model.

Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1655 1600V 55A 20 - 70 mA ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage Repetitive peak reverse voltage Average on-state current TO-3P Ins (TC=80℃) TO-247(TC=85℃)
