JCT625B

25A SCRs

JCT625B Features

* 1 2 3 TO-220A 1 2 3 TO-220B Insulated Non-Insulated 123 TO-220C 1 2 3 TO-220F Insulated K(1) G(3) 1 2 3 TO-220FP Insulated A(2) Symbol VDRM/ VRRM IT(RMS) IGT JCT625 600V 25A ≤40mA JCT825 800V ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operatin

JCT625B General Description

JCT625/825 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc.

JCT625B Datasheet (442.73 KB)

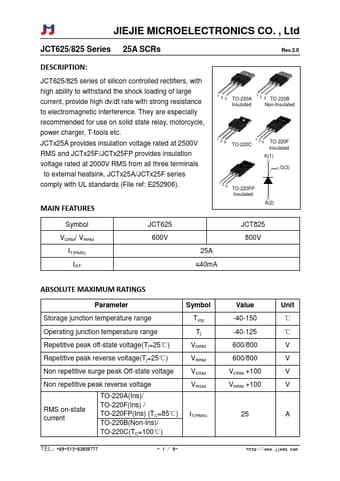

Preview of JCT625B PDF

Datasheet Details

Part number:

JCT625B

Manufacturer:

JIEJIE

File Size:

442.73 KB

Description:

25a scrs.
