JCT625i, JCT825i Datasheet - JIEJIE

JCT625i - 25A SCRs

With high ability to withstand the shock loading of large current, JCT825i provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools etc. From all three terminals to external heats.

JCT625i Features

* Symbol VDRM/ VRRM IT(RMS) IGT Value 600 and 800 25 ≤35 Unit V A mA 12 3 TO-220A Insulated A(2) K(1) G(3) ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj

JCT825i-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT625i, JCT825i. Please refer to the document for exact specifications by model.

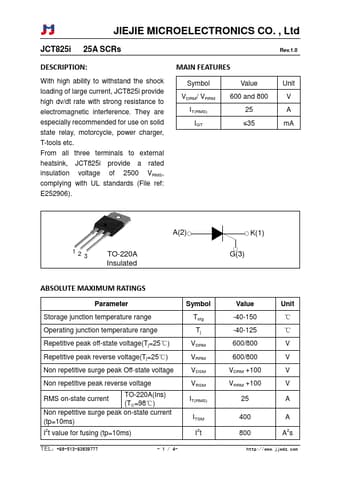

JCT625i Datasheet Preview Page 2 JCT625i Datasheet Preview Page 3

Datasheet Details

Part number:

JCT625i, JCT825i

Manufacturer:

JIEJIE

File Size:

251.96 KB

Description:

25a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT625i, JCT825i.
Please refer to the document for exact specifications by model.
