SMF10ALH - 400W Transient Voltage Suppressor

Product Overview

JIEJIE

Datasheet Details

Part number	SMF10ALH
Manufacturer	JIEJIE
File Size	292.57 KB
Description	400W Transient Voltage Suppressor
Datasheet	SMF10ALH Datasheet

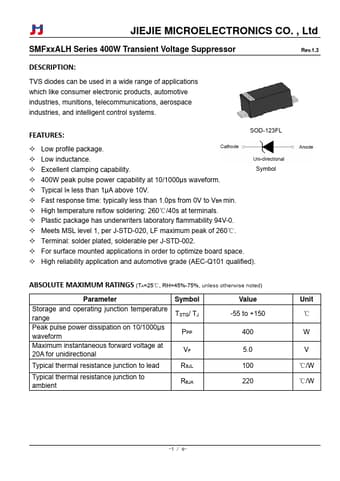

Additional preview pages of the SMF10ALH datasheet.

Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

SOD-123FL.
Low profile package.
Low inductance.
Excellent clamping capability. Symbol.
400W peak pulse power capability at 10/1000μs waveform.
Typical IR less than 1μA above 10V.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature reflow soldering: 260℃/40s at terminals.
Plastic package has underwriters laboratory flammability 94V-0.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.
Ter.
