SMF10A - Surface Mount ESD Protection Diodes

Product Overview

Vishay

Part number	SMF10A
Manufacturer	Vishay
File Size	141.05 KB
Description	Surface Mount ESD Protection Diodes
Datasheet	SMF10A Datasheet
Note	This datasheet PDF includes multiple part numbers: SMF10A, SMF5V0A. Please refer to the document for exact specifications by model.

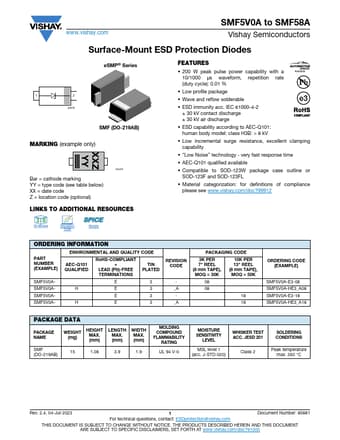

Additional preview pages of the SMF10A datasheet.

200 W peak pulse power capability with a 10/1000 μs waveform, repetition rate (duty cycle): 0.01 % Available.
Low profile package.
Wave and reflow solderable.
ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge.
ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV.
Low incremental surge resistance, excellent clamping capability.
“Low Noise” technology - very fast response time.
