SMF45ALH, SMF10ALH - 400W Transient Voltage Suppressor

JIEJIE

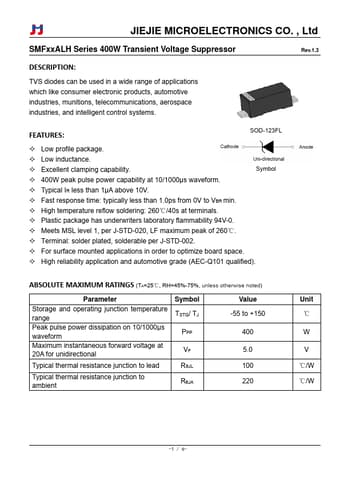

SMF45ALH Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF45ALH, SMF10ALH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SMF45ALH, SMF10ALH
Manufacturer	JIEJIE
File Size	292.57 KB
Description	400W Transient Voltage Suppressor
Datasheet	SMF10ALH-JIEJIE.pdf
Note	This datasheet PDF includes multiple part numbers: SMF45ALH, SMF10ALH. Please refer to the document for exact specifications by model.

SMF45ALH Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

SOD-123FL.
Low profile package.
Low inductance.
Excellent clamping capability. Symbol.
400W peak pulse power capability at 10/1000μs waveform.
Typical IR less than 1μA above 10V.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature reflow soldering: 260℃/40s at terminals.
Plastic package has underwriters laboratory flammability 94V-0.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.
Ter.
