JCS4N60BE, JCS4N60E-JILINSINO, N-CHANNEL MOSFET

R JCS4N60E JCS4N60E MAIN CHARACTERISTICS Package ID VDSS Rdson_max （Vgs=10V） Qg-typ 4.0 A 600 V 2.35Ω 11.8nC * * * LED APPLI.

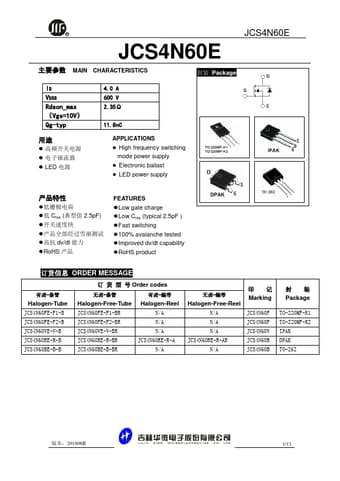

datasheet Preview Page 1 from Datasheet4u.com

JCS4N60E-JILINSINO-MICROELECTRONICS.pdf

JCS4N60BE Datasheet Preview — This datasheet PDF includes multiple part numbers: JCS4N60BE, JCS4N60E-JILINSINO. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JCS4N60BE, JCS4N60E-JILINSINO

Manufacturer:

JILIN SINO-MICROELECTRONICS

File Size:

776.33 KB

Description:

N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: JCS4N60BE, JCS4N60E-JILINSINO.
Please refer to the document for exact specifications by model.

Features

* Low gate charge
* Low Crss (typical 2.5pF )
* Fast switching
* 100% avalanche tested
* Improved dv/dt capability
* RoHS product ORDER MESSAGE Order codes - Halogen-Tube JCS4N60FE-F1-B JCS4N60FE-F2-B JCS4N60VE-V-B JCS4N60RE-R-B JCS4N60BE-B-B - - Halogen-Free-Tube Haloge

Applications

* High frequency switching mode power supply
* Electronic ballast
* LED power supply
* Crss ( 2.5pF)
* dv/dt
